Wind Energy

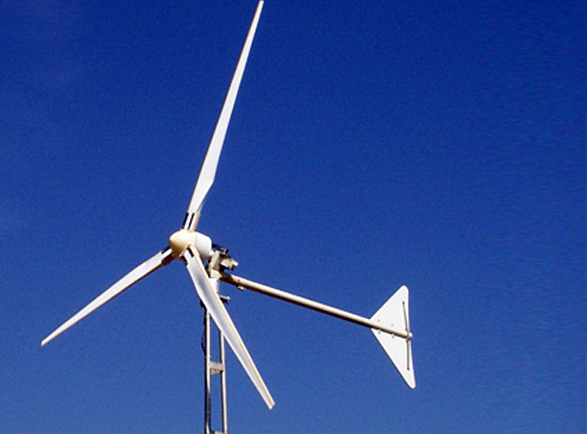

Product : Unitron UE-33 3.3 kw

Product Description


Model	UE 33
RATED OUTPUT	3300W
RATED WIND SPEED m/s / mph	10.5 / 24
PEAK OUTPUT	3650W
CUT IN m/s / mph	2.7 / 6
YAW SYSTEM	Passive by tail Vane
YAW / Tower Cable	N x 360° Freedom
GENERATOR	PM 3 phase alternator (variable speed )
Insulation Class & Efficiency	Class “H”, > 87%
Stator Skew	1 slot pitch
Max stator Core Temperature	180° C
POLES	16
RPM- 50hz/60hz	375 / 450
Over speed limit RPM / Hz	525/70
Monthly KWH 10mph / 4.5 m/s PLF %	352 kWh (18%)
Monthly KWH 12mph / 5.4 m/s PLF (%)	568 kWh (25%)
ROTOR DIAMETER	4.65m / 15 ft
NUMBER OF BLADES	3
BLADE MATERIAL & Cp	Carbon Fiber composite, ~ 0.37
SWEPT AREA	16.4 / 175 Sq.m / sq.feet
Minimum Tip clearance cm / in	36 /14
Tip Speed Ratio ( TSR )	8.5
LATERAL THRUST ( MAX )	3200 nts
GOVERNOR / over speed limit	Angle tilt ( Hydraulic assisted )
GOVERN SPEED	27mph
GOV. SHUT-DOWN / OPTIONAL STOP	Electro- dynamic Switch
UNIT WEIGHT (tower top )	77 Kg.
TOWER Top Pipe / Yaw adaptor	P 5” Shd, 40
VOLTAGE options	12 to 48 / 60 - 240 LV / HV
ELECTRONIC CONTROLLER	Incl. but separate
WARRANTY	2 yrs.
OPERATING LIFE	20 yrs.
SURVIVAL WIND	55 m/s
SUGGESTED. ROUTINE MAINTENANCE	Annual inspection
